AVAILABLE EQUIPMENT

Centellax TG1C1-A Clock Synthesizer and TR1C1A Clock recovery unit

The Centellax TG1C1-A Clock Synthesizer is designed to extend the operation of the TG1B1-A Bit error ratio tester (BERT) (Loaned separately from CMC) to 13.5 Gbps.

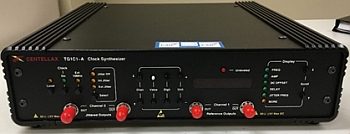

photo of Centellax TG1C1-A Clock Synthesizer and TR1C1A Clock recovery unit

What’s Included

  • Centellax TG1C1-A
  • MiniCircuits 50 Ω Terminators
  • Power Supply
  • Power Cord

Helpful Resources​

User Manual

System Specifications​

  • 500 MHz to 13.5 GHz square wave generator
  • 0.6 V to 2.0 V amplitude range
  • -2.0 V to 2.0 V DC offset adjustable range
  • Jitter < 2.0 ps

Applications

  • Extended operation of TG1B1-A BERT from 500 Mbps to 13.5 Gbps
  • General purpose lab clock

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
