Keysight DCA-X Module, Model 86118A (Dual RF Heads)

The Keysight 86118A in the CMC Microsystems’ Test Pool is a time-domain RF/microwave module with a working bandwidth of 70 GHz. The unit has basic functions for broadband measurements, and works when inserted into an Keysight DCA mainframe (separate request).

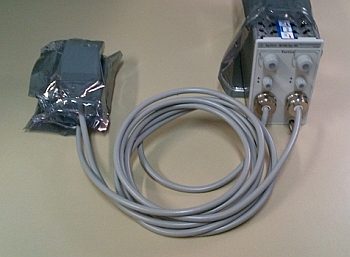

Photo of 86118A

What’s Included

Keysight 86118A module

Helpful Resources​

Equipment Specifications

System Specifications​

  • Frequency range to 70 GHz
  • Two (2) RF/microwave inputs for single-ended or differential measurements
  • 50 ohm inputs
  • Two-meter inbuilt cables extend the reach of the RF/microwave heads

Applications

Time domain measurements for sub-circuit network modelling

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
