Picosecond Pulse Lab 5541A Bias Tee (80 kHz – 26 GHz)

The Picosecond 5541A broadband Bias Tee is used to couple a DC signal onto an RF signal between 80 kHz and 26 GHz. It accepts a maximum of 50 VDC and 100 mA DC current. The bias tee is composed of three ports: RF, DC, and RF + DC. The RF port passes an RF signal but blocks DC, while the DC port does the opposite. The RF + DC port passes both RF and DC, i.e. the coupled signal.

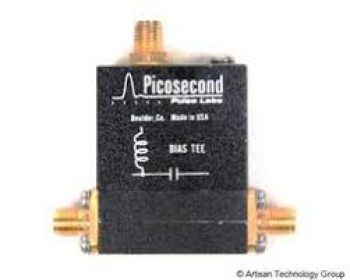

photo of Picosecond Pulse Lab 5541A Bias Tee (80 kHz – 26 GHz)

What’s Included

  • Picosecond 5541A Bias Tee

System Specifications​

  • 80 kHz – 26 GHz frequency range
  • 8 ps rise time
  • 50 V and 100 mA maximum DC voltage and current respectively
  • Female SMA connectors

Applications

  • Provide power to semiconductor device
  • Control remote RF hardware
  • Couple control and communications onto an RF Line
  • Add DC-offset to signal

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
