GLOBALFOUNDRIES 22FDX FDSOI 22 nm

Description

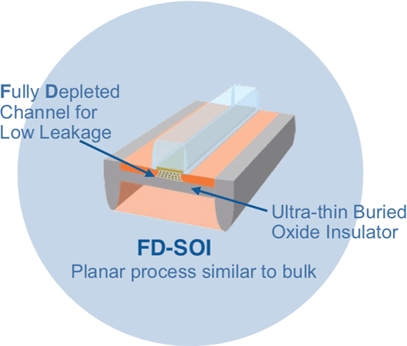

CMC Microsystems offers access to the GLOBALFOUNDRIES (GF) 22FDX 22 nm Fully-Depleted Silicon-on-Insulator (FD-SOI) process technology platform for low power embedded applications. The 22 nm FD-SOI transistor technology delivers FinFET-like performance with energy-efficiency. The simultaneous high Ft /high Fmax, high self-gain and high current efficiency of 22FDX enables ultra low power analog/RF/mmWave designs.

For more information, please refer to the GLOBALFOUNDRIES 22FDX web page.

CMC Microsystems offers access to GLOBALFOUNDRIES technologies via its cost-shared multi-project wafer runs. To access this technology, please contact fab@cmc.ca.

Applications

The technology is suited for:

  • Integrated RF and analog designs
  • Low-power digital circuits
  • mmWave technologies

Potential applications include:

  • RF, Analog and Microwave systems
  • Automotive systems
  • Low Power Embedded

Features

  • 0.4 V to 0.8 V nominal core voltage
  • 1.2 V / 1.5 V / 1.8 V IO options
  • Four core device Vt’s (FBB, RBB & eLVT)
  • RF BEOL /w ultra thick metal stacks
  • APMOM capacitor

Design Kits and Libraries

  • GF22FDX-EXT

Pricing

Subscribers (Academics in Canada)
Subscribers (Academics in Canada, Peer Reviewed)
Academics outside of Canada or Industry

Pricing will be provided under a 3-way NDA. Contact fab@cmc.ca.

N/A

Contact CMC. Contact fab@cmc.ca for MPW access, or sales@cmc.ca for a dedicated run.

Licensing

Minimum Subscription Required: Research
