Keysight RF PXIe System ( upgraded Keysight M9375A )

The Keysight Vector Network Analyzer (VNA) comes with a wide bandwidth for 5G research and offers full 6-port analysis. It can also be combined with multiple Keysight VNAs for MIMO research and includes an automated electronic calibration kit to simplify and speed the process of getting the correct measurements quickly. Also available from CMC, these VNAs can be used with a Keysight Materials measurement suite software (N5100A) and dielectric probe kit to allow for research in dielectric resonators and interfacing with biological systems. The VNA is housed in an 18-slot M9019A Gen 3 Chassis and uses an M9037A Controller with a swappable SSD drive.

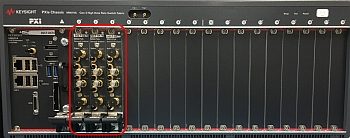

Photo of Keysight_M9375A

What's Included

  • Keysight M9019A PXIe Gen 3 Chassis
    • 18 slots in total, 16 of which are hybrid, 1 timing slot.
    • Drivers and support for LabView and Windows
    • Multi-chassis power-sequencing for scalable system arrays
  • Keysight M9381A Vector Signal Generator for PXIe Chassis: The Vector Signal Generator (VSG) can be used to generate complex quadrature communication modulation schemes or be used as a simple signal generator. This VSG has a frequency range of 6 GHz and a modulation bandwidth of 100 MHz. When two of the VSGs are combined in one chassis, they can operate from the same local oscillator to generate phase coherent signals from their 1MSa memory. The VSG is housed in an 18-slot M9019A Gen 3 Chassis and uses an M9037A Controller with a swappable SSD drive.
    • 6 GHz range with a modulation bandwidth of 100MHz
    • Local Oscillator (LO) sharing for phase coherency
    • Signal Studio for custom modulation of signals
    • LabView drivers
  • M9375A 26.5 GHz PXIe Vector Network Analyzer:with time domain analysis option M9375A-010 (installed)
  • Two 3.5 mm male cables (DC to 26.5 GHz)
  • Y1242A Multiport Cable Kit
  • N7555A ECal Module DC to 26.5 GHz, 2-port automated electronic calibration
  • 8 in-lbs torque driver
  • 18-slot Chassis with 16-hybrid & 1 timing slot
  • Multi-chassis power-sequencing for scalable system arrays
  • M9037A Controller with Intel i7-4700EQ 2.4 GHz processor, 16 GB RAM, Removable 240 GB SSD drive, DisplayPort, GPIB, USB and LAN ports, x8 Gen 3 PCIe IPASS connector

Helpful Resources

System Specifications


  • MIMO measurements
  • Dielectric resonator characterization
  • Demanding CPU and memory requirements

Rent from CMC

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
