Materials Measurement Suite and Dielectric Probe Kit

This software and hardware bundle automates permittivity and permeability measurements using the coaxial probe method in conjunction with a Keysight network analyzer such as the 26 GHz Keysight M9375A multiport VNA. The Materials Measurement Suite is used to control the analyzer and measure the material’s response to radio frequencies from 10 MHz to 50 GHz, depending on the choice of analyzer used.

Specifications

200 MHz to 50 GHz operation depending on the probes
Performance Probes can be autoclaved
High Temperature Probes can be used with corrosive chemicals up to 200 degrees C

For more details, see the Technical Overview and a list of analyzers that are compatible with the Materials Measurement Suite (N1500A).

Applications

Permittivity characterization of liquids and semi-solids.

Resources

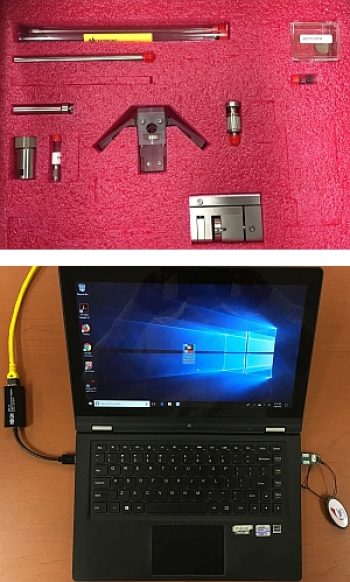

What’s Included

Laptop
Keysight N1500A Materials Measurement Suite, Coaxial Probe Method (option 004).
Keysight N1501A Dielectric Probe Kit, with options:
- 101 – High Temperature Probe Kit,
- 102 – Slim Form Probe Kit, and
- 104 – Performance Probe Kit.

Note: If you do not have a compatible Keysight Network Analyzer, you will need to book one separately. The Materials Measurement Suite and Dielectric Probe Kit (Coax Probe Method) is compatible with the following Equipment Rental Pool network analyzers:

Rent this equipment
