The Keysight FieldFox Combination Analyzer can be used with CMC’s Keysight Materials Meaurement Suite and Dielectric Probe Kit to test the permittivity of liquids and semi-solids up to 6.5GHz and using the coaxial probe method. This unit may also be used as a standalone VNA for cable and antenna testing, and comes in a portable, robust, battery operated package & carrying case. The unit’s included options allow for transmission/reflection measurements and time domain measurements. Additional measurement personalities can be added upon request.
LAB
AVAILABLE EQUIPMENT

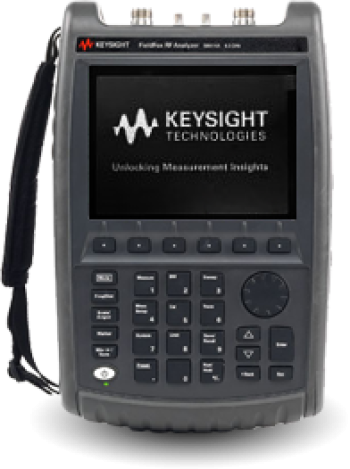

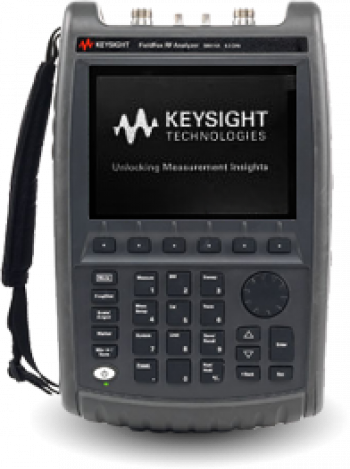

Keysight N9914A FieldFox 6.5 GHz Combination Analyzer (Cable, Antenna, VNA)
What’s Included
- N9914A FieldFox Combination Analyzer
- Power adapter
- 2x ferrite cores
- Safety and Quick Reference documentation
- LAN cable
- Carrying case
- Option 210: VNA transmission/reflection
- Option 010: VNA Time Domain S11 and S21
- Serial Number: MY58312024 or MY57271361
Helpful Resources
- Datasheet
- Getting Started Video (approximately 10 minutes)
- Quick Reference Guide
- Complete Documentation Set
- (SCPI) Programming Guide
- DataLink Software
System Specifications
- 30 kHz to 6.5 GHz frequency range
- Single port analysis
- Various calibration methods available
Compatible with this analyzer: An optional Material Measurements Suite, N1500A is available from CMC.
Applications
- Network analysis
- Power measurement
- Field testing in a portable format
- Time Domain Analysis
Rent from CMC
- Request this equipment on a short-term loan basis.
- Click here to complete the rental application.
