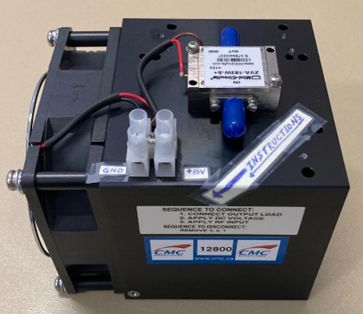

Mini-Circuits Wideband Amplifier 0.1 to 18 GHz

This amplifier has a gain of approximately 27dB over its 18GHz range and output power up to +26dBm. Female SMA connectors, a large heat sink and fan are included. Researchers need to provide their own 15V power supply.

Specifications

  • 0.1 to 18GHz frequency range
  • 27dB gain
  • SMA for RF input/output
  • Terminal block for power input
  • Input VSWR: 1.3
  • Output VSWR: 1.6
  • DC Supply Required: 15V

What’s Included

  • RF power amplifier
  • Heat sink
  • Fan

What’s not Included

15V Power Supply

Resources

Datasheet

Rent this equipment

Contact Us

James Millar
Technical Staff, Embedded Systems Design
