Tektronix TDS3052B Digital Phosphor Oscilloscope

The Tektronix TDS3052B DPO (Digital Phosphor Oscilloscope) has a 5 GS/s sample rate across a 500 MHz bandwidth. The Intensity Grading feature darkens and thickens lines representing signals that have been continuously captured. In addition, the “WaveAlert” feature detects signal anomalies and can notify users by stopping acquisitions, beeping, or saving waveforms. This allows tests to run unmonitored over long periods of time. CMC’s TDS3052B has been equipped with TDS3TRG Advanced Trigger, TDS3FFT FFT, and TDS3AAM Advanced Analysis modules.

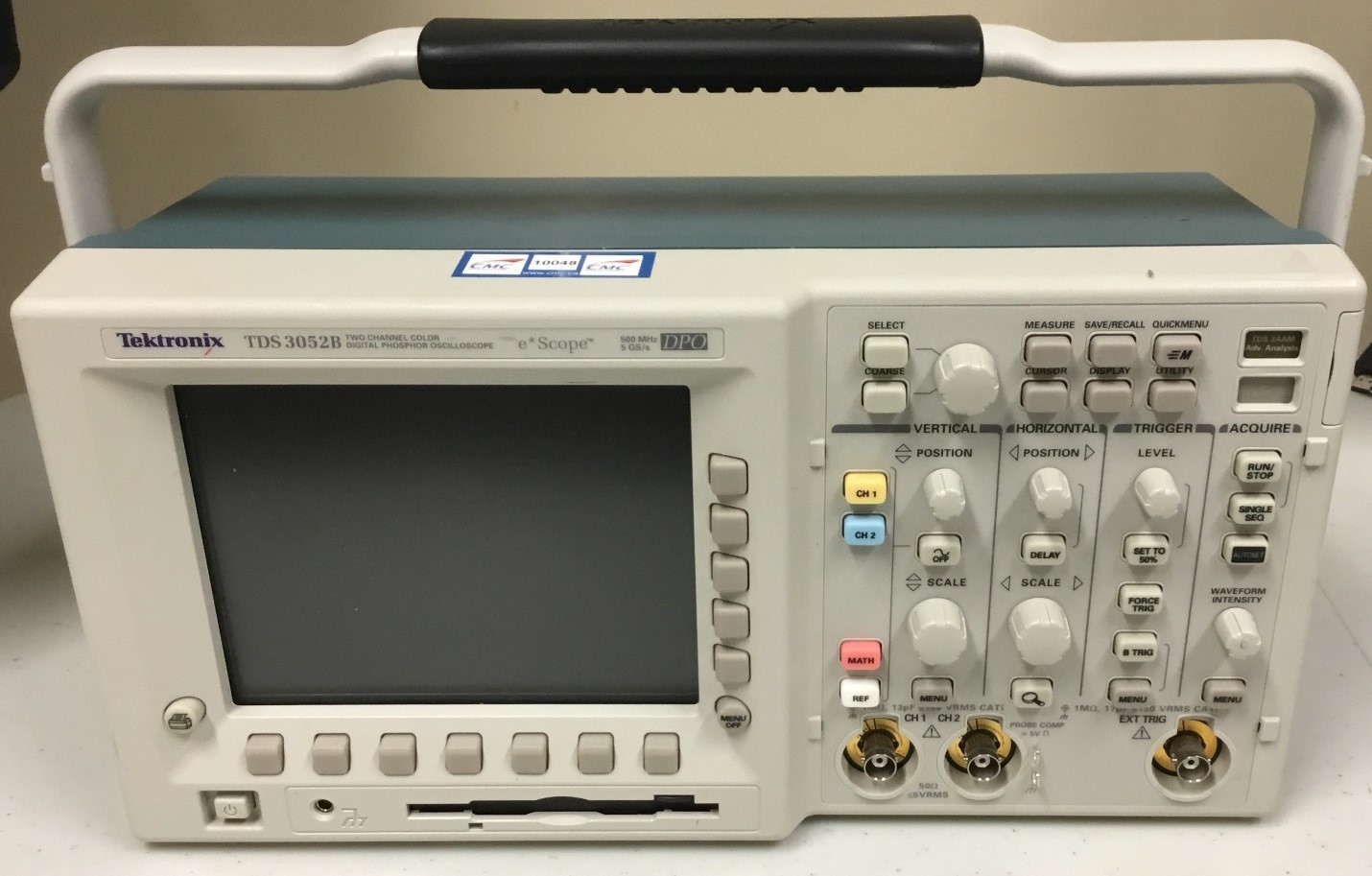

photo of Tektronix TDS3052B Digital Phosphor Oscilloscope

What's Included

  • Tektronix TDS3052B Digital Phosphor Oscilloscope with:
    • TDS3TRG: Advanced Trigger Module
    • TDS3FFT: FFT Module
    • TDS3AAM: Advanced Analysis Module

Helpful Resources

System Specifications

  • 500 MHz bandwidth, sampled at 5 GS/s
  • 2 Channels, 50 Ω or 1 MΩ + 13 pF, AC or DC coupling
  • 10K record length
  • ±2 % vertical accuracy
  • 9-Bit vertical resolution

Applications

  • Digital Design and Debug
  • Power Supply Design
  • General Test Procedures

Rent from CMC

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
