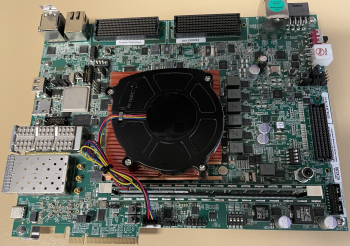

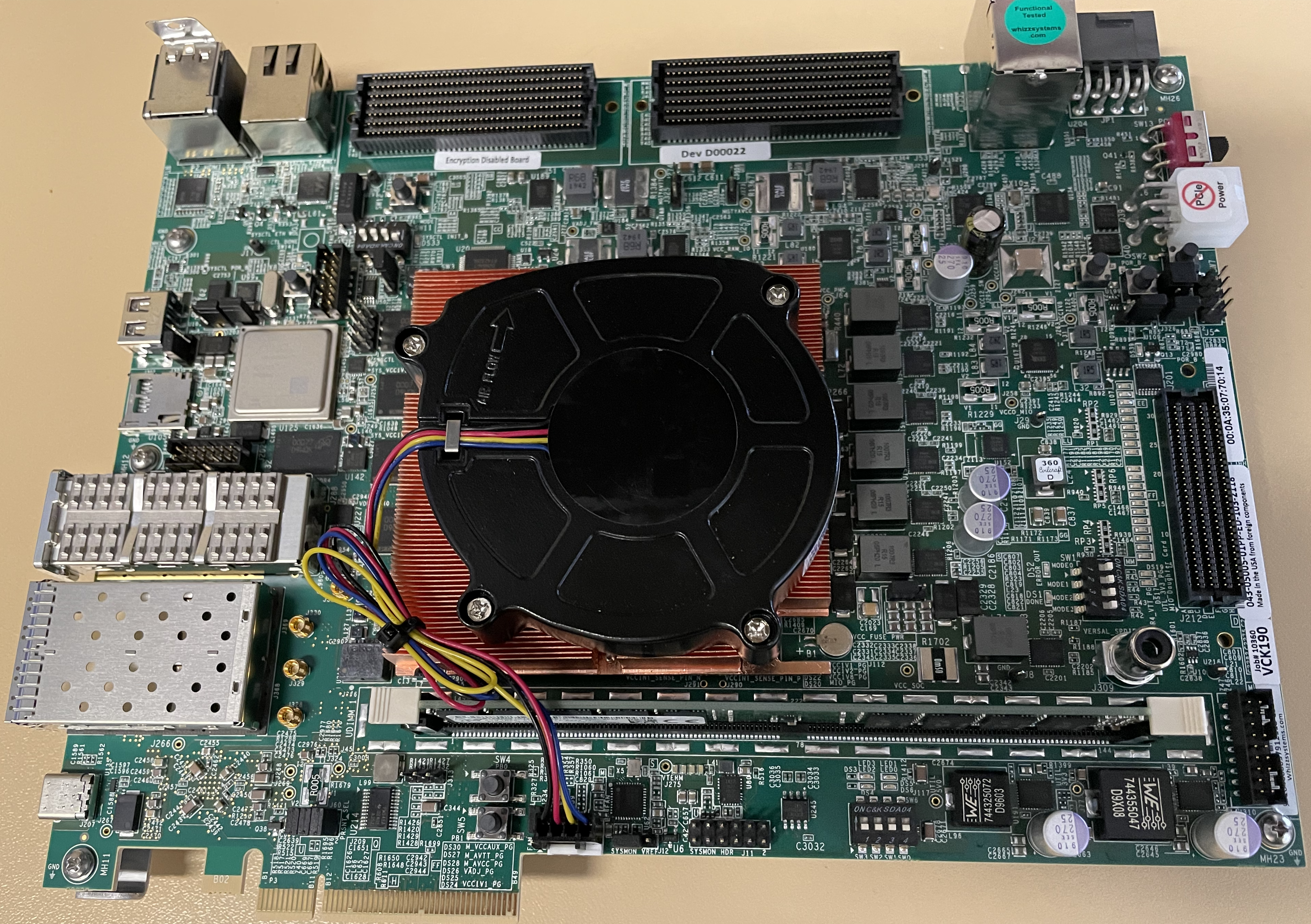

Xilinx Versal AI Core Series VCK190 Evaluation Kit

The Xilinx VCK190 Versal AI Core Series Evaluation Kit allows designers to develop solutions using specialized AI and DSP engines to deliver over 100x greater compute performance compared to current server class CPUs. The kit offers connectivity and memory options and is supported by the latest Xilinx development tools and flows.

What’s Included

  • Xilinx VCK190 Evaluation Board
  • QSPI Book Module
  • Pmod Module
  • 2x Ethernet Cables
  • 2x Micro SD cards
  • 180W (12V) power supply



The VCK190 Evaluation Kit is suitable for research requiring high throughput AI inference from cloud to edge, including:

  • Data centre computing
  • 5G radio & beamforming
  • Intelligent machine vision
  • Wireless test equipment
  • Automotive/ADAS prototyping


  • Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Board
    • Versal ACAP VC1902 production silicon featuring
      • 400 AI Engines
      • 1,968 DSP Engines
      • 1,968K System Logic Cells
      • 899,840 LUTs
      • Dual-Core ARM Cortex-A72 Application Processing Unit
      • Dual-Core ARM Corex-R5F Real-Time Processing Unit
    • PCIe® Gen4 interface
    • HDMI for video processing applications
    • SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
    • DDR4 and LPDDR4 memory interfaces
    • FMC expansion connectors

Rent this equipment


– or –

Contact Us

Hugh Pollitt-Smith
Team Leader,
IoT and Edge AI
Does your research benefit from products and services provided by CMC Microsystems?

Open source design platforms for accelerated system development.
