AVAILABLE EQUIPMENT

Agilent E4980A Precision LCR Meter

The Agilent E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.

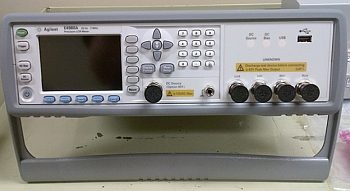

photo of Agilent E4980A Precision LCR Meter

What’s Included

  • Precision LCR Meter, Agilent model E4980A
  • External Bias Fixture, Agilent model 16065A
  • Test fixture for axial lead components 16047E
  • Test leads (BNC) 16048A
  • Installed Options:
  • 001: Power and DC Bias Enhancement
  • 200: DCR Measurement
  • 710: Interface Capable

System Specifications​

  • 20 Hz to 2 MHz, with 4-digit resolution in any range
  • 0.05% basic accuracy with superior measurement repeatability at low and high impedance
  • Built-in 40V DC Bias
  • 20 Vrms test signal
  • High-speed measurements: 5.6 ms
  • 201 points list sweep
  • Versatile PC connectivity (LAN, USB and GPIB)

Applications

Impedance measurement

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
