Agilent N9010A EXA X-Series Signal Analyzer – Frequency Range 10 Hz to 26.5 GHz

EXA X-Series Signal Analyzer available from the CMC test equipment pool is a versatile test system that allows you to analyze a variety of signals, from a single tone to complex, modulated tones. It has potential applications in many research areas, including RF/Microwave, mixed-signal design, MEMS, and biomedical. The analyzer comes with a number of automated software application suites, including signal vector analysis, phase noise, and noise figure measurements. The instrument runs Windows XP Pro operating system and features Agilent proprietary firmware. It can be accessed and programmed remotely via USB or LAN and is LXI Class C compliant.

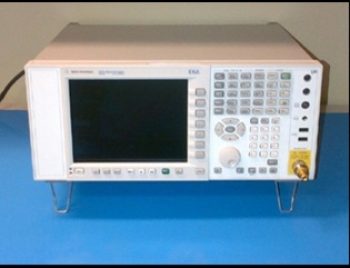

photo of Agilent N9010A EXA X-Series Signal Analyzer - Frequency Range 10 Hz to 26.5 GHz

Specifications​

  • Operating range: 10 Hz to 26.5 GHz
  • Analysis bandwidth: 40 MHz
  • Phase Noise: -102 dBc/Hz @10 kHz Offset
  • Displayed Average Noise Level (DANL): -163 dBm
  • Amplitude Accuracy: ± 0.27 dB
  • Windows 10 operating system

Applications

  • Vector Signal Analysis
  • Phase Noise Measurement
  • Noise Figure Measurement
  • Conversion Gain/loss
  • Over 25 other measurement applications

What’s Included

  • Agilent N9010A Signal Analyzer with options:
    • 526: 26.5 GHz frequency range
    • PFR: Precision frequency reference
    • MPB: Microwave preselector bypass
    • EDP: Enhanced display package license
    • P07: Preamplifier, 7 GHz
    • B40: Bandwidth Upgrade, license only, from 10 – 40 MHz BW
    • CR3: Connector, wideband IF output
  • Accessories: flexible RF cables, RF adapters
  • Bundled with an 89601B software license which enables vector signal analysis capabilities and also includes:
    • Phase Noise Measurement (N9068A-2FP, AFP)
    • Noise Figure Measurement (N9069A-1FP, AFP)

Resources​

Datasheet

Rent this equipment

Start an Application
