AVAILABLE EQUIPMENT

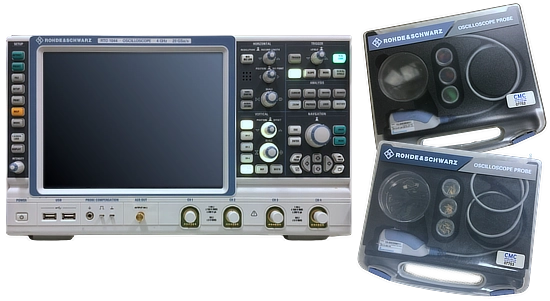

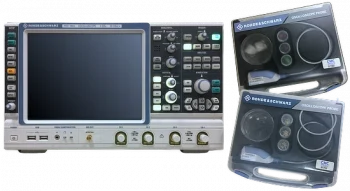

Rohde & Schwarz RTO1044 Digital Oscilloscope with Mixed-Signal Option

The Rohde & Schwarz RTO1044 Digital Oscilloscope available from the CMC test equipment pool combines excellent signal fidelity, high acquisition rate and the real time digital trigger system. The RTO1044 offers four analog and 16 digital channels and it allows performing a wide range of automated measurements including: jitter analysis, eye diagrams and spectral analysis on microelectronic devices and systems.

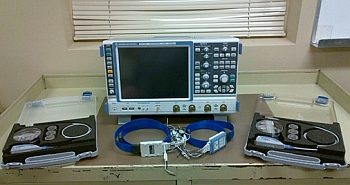

What’s Included

  • R&S RTO1044 Mixed Signal Oscilloscope
  • 3GHz RT-ZS30 Single-ended Active Probe
  • 4GHz RT-ZD40 Differential Active Probe

System Specifications​

  • 4 channels, 4 GHz analog bandwidth
  • 20 GSa/s sample rate on 2 channels / 10 GSa/s sample rate on 4 channels
  • 20 Mpts/channel memory depth
  • 16 Digital channels, 5 GSs/s, 200 ps channel resolution
  • Hardware-accelerated measurements: amplitude measurements, time measurements
  • Hardware-accelerated analysis: spectrum, histogram, mask test
  • ENOB (Effective Number of Bits) of A/D converter: 7 to 7.5 over the entire bandwidth
  • Up to 4 GHz probing system included with the oscilloscope
  • The instrument is operated from a PC-based Windows XP Pro operating system, and features R&S proprietary firmware with variety of trigger options, analysis and protocol tools and seamless integration with Matlab, Labview and Excell

Applications

  • High-speed serial data analysis
    • Capture of eye diagrams
    • Characterization of discrete, infrequent or transient electrical signals
      • This differentiates capabilities of this real-time oscilloscope from a sampling oscilloscope, where only periodic waveforms can be characterized
    • Triggering and decoding of serial protocols
  • Advanced spectral analysis
    • The oscilloscope provides hardware-accelerated spectral analysis capabilities, using FFT based algorithm to analyze spectral content at full analog bandwidth of the instrument
  • Logic analysis and Mixed-Signal Test

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
