Stanford Research SR720 LCR Meter

The SR720 LCR Meter measures major (L, C, R) as well as minor (Q, D, R) parameters of passive components with 0.05 % accuracy. The meter can perform measurements at five fixed test frequencies ranging from 0.1 to 100 kHz and adjustable amplitudes from 0.1 to 1.0 Vrms. The device accepts up to 40 Vdc external biasing if the built-in 2 Vdc is insufficient for a measurement. Included in this rental package is an SR728 BNC adapter for connecting remote fixtures and other equipment. Three binning schemes (pass/fail, overlapping, and sequential) are useful for ensuring that groups of components have the same parameter values that are listed on their specification sheet within a programmable error. Computer control is enabled through an RS-232 or GPIB connection.

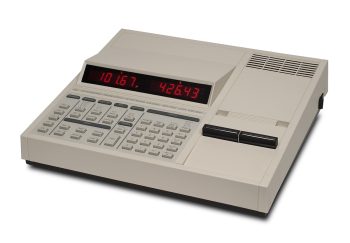

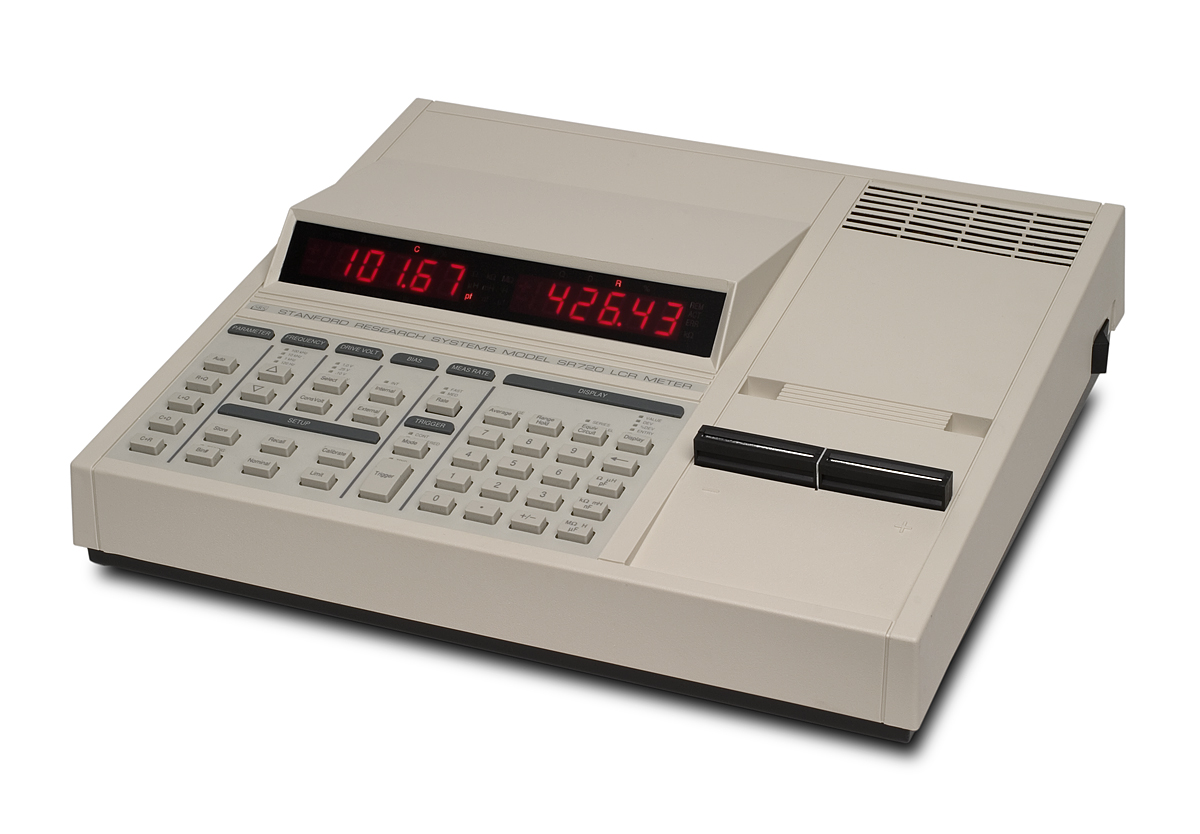

photo of Stanford Research SR720 LCR Meter

What’s Included

  • SR720 LCR Meter
  • SR728 BNC Adapter
  • Probe set

Helpful Resources​

SR720 LCR Meter Datasheet

System Specifications​

  • 1, 0.12, 1, 10, and 100 kHz test frequencies
  • 1 to 1.0 Vrms drive amplitude with 50 mV resolution
  • 05 % basic Accuracy
  • Series or parallel equivalent circuit models are accepted

Applications

  • Passive component quality assurance
  • LCR characterization of passive components

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
