Tektronix MSO2024B Mixed Signal Oscilloscope

The MSO2024B offers four 200-MHz analog and 16 digital channels for complex design analysis. The Intensity Grading feature displays uncommon anomalies in lighter tones differentiating them from expected waveforms. The “Wave Inspector” feature is composed of separate zoom and pan knobs to navigate the oscilloscope’s one million point record length. Digital ones and zeros are color coded green and blue respectively to ensure that flat traces are distinguishable. White edges indicate multiple logic transitions, suggesting that using a higher sample rate for the next acquisition will unveil more information. CMC’s MSO2042B Oscilloscope has a DPO2COMP application module installed which enables computer analysis and serial triggering via RS-232/422/485/UART buses. Included is a Tektronix P6316 Digital Probe with 8 pF capacitive loading and 101 kΩ input impedance.

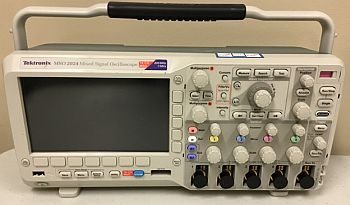

photo of Tektronix MSO2024B Mixed Signal Oscilloscope

What’s Included

  • Tektronix MSO2024B Mixed Signal Oscilloscope
  • Tektronix P6316 Digital Probe
  • DPO2COMP Application Module

System Specifications​

  • 200 MHz analog frequency range sampled at 1 GS/s
  • 2.1 ns rise time
  • 1 MΩ and 11.5 pF analog input impedance (oscilloscope without probes)
  • TTL, CMOS, ECL, PECL, or User Defined (±20 V) threshold selections


  • Embedded systems
  • Any application requiring time-aligned digital and analog waveform display

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
