Tektronix RSA507A 7.5GHz Portable Real Time Spectrum Analyzer

The RSA507A is a ruggedized portable real-time spectrum analyzer that comes with analysis software and a laptop. The analysis software, SignalVu-PC, is similar to that running on Tektronix’s other spectrum analyzers and it includes an API for those interested in more control over their analysis and experiments.

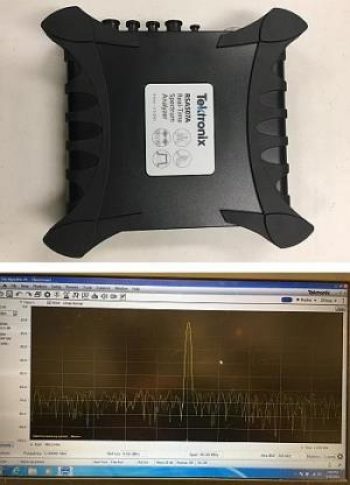

photo of Tektronix RSA507A 7.5GHz Portable Real Time Spectrum Analyzer

Specifications​

  • 9 kHz to 7.5 GHz range
  • 40 MHz acquisition bandwidth
  • Max measurable power of 30 dBm at >10 MHz
  • Input attenuator 0 dB to 51 dB, 1 dB step
  • Portable
  • AM/FM/PM measurements

Applications

  • Spectrum Analysis
  • Interference hunting

What’s Included

  • RSA507A Spectrum Analyzer
  • USB cable
  • N-type to SMA adapter
  • SignalVu-PC software
  • Lenovo Laptop

Resources​

Rent this equipment

Start an Application
