Electronic Sensor Platform (ESP)

3IT logo


ESP is a signal conditioning platform for converting trapped charges into a voltage signal. Charges are trapped on the surface by a functional material applied by the user, such as graphene, biomolecules, or quantum dots. The platform is useful for the implementation of solid-state high-performance detectors.

Electronic Sensor Platform (ESP)

Note: The expected number of chips to be delivered for this technology is 11 (10 x 10 mm).


  • Ambient gas/radiation sensor
  • Multiplex detectors for different functionalized coatings


  • Multi-project wafer runs for fabrication of custom designs
  • Cloud design environment (includes design guide, layout template, reference designs, and simulations)
  • DRC and engineering support for sensor design
  • Sub-dicing
  • Mounting and wire bonding in ceramic pin grid array package
  • Integration with microfluidics
  • Reference chips available


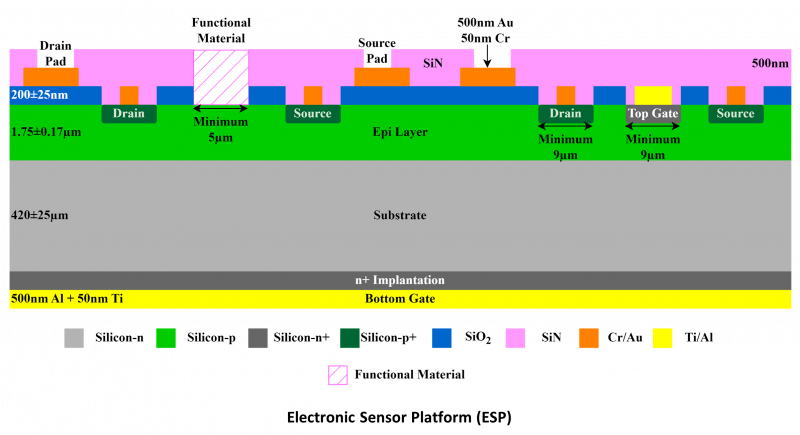

  • Silicon junction field effect transistors with unpassivated gate, enabling user-deposition of sensor material
  • One metal routing layer, silicon substrate
  • Up to 10 copies per design (10 x 10 mm).  Available as bare die or packaged parts
  • Sub dicing into 5 x 5 mm2 dies is available for an additional cost.
