LAB

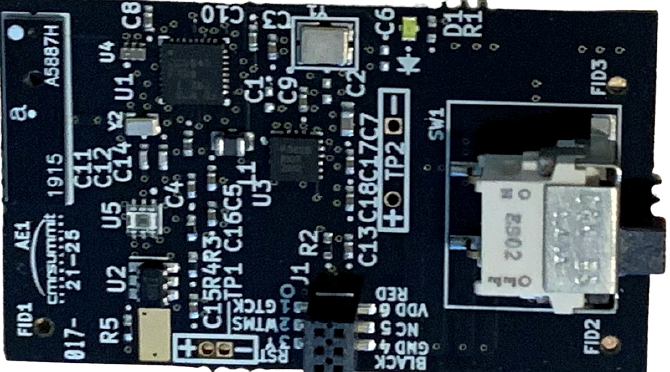

SwiftMote IoT Customizable Sensor Platform

SwiftMote is a family of open-source, customizable, low-power, Bluetooth motes designed to be a proving ground for your novel sensors and packaging research to showcase to investors.

Jump-start your research by using one of the available SwiftMotes out of the box or customize it to suit your R&D needs.

SwiftMote includes everything needed to sense the environment, store the data, and forward the information to a phone or PC using Bluetooth.

What’s Included

  • TI CC2640 Bluetooth processor
  • 128kB of Flash memory
  • Light and temperature sensor
  • Accelerometer
  • Android app to receive and display data

Resources

Features

  • A small, battery-powered mote
  • Bluetooth connectivity
  • Open design flow
  • KiCad project file schematics, layout and Bill of Materials
  • Software source code

Applications

  • Custom low-power sensing
  • Sensor-network research
  • Machine monitoring
  • Biomedical monitoring
  • IoT for AI at the edge, sensor fusion

Related Products

Variant # 1: SwiftMote – Electrochemical

Leveraging the solid foundation provided by the SwiftMote Platform, this electrochemical variant provides researchers with a battery-operated wireless sensor for electronic

What’s Included

  • ST BlueNRG-LP Bluetooth processor
  • 256kB of flash memory
  • 64-bit unique ID
  • Expansion ports with 4x 12-bit ADC and I2C
  • Analog Devices AD5941 potentiostat amplifier with 16-bit ADC and 12-bit DAC
  • Hos PC application to record and process square-wave voltammetry data

Applications

  • Electrochemical experiments
  • Generic potentiostat interface for biomedical and gas sensing applications
  • IoT for AI at the edge, sensor fusion.

Resources

Contact Us

James Millar
Technical Staff, Embedded Systems Design
Does your research benefit from products and services provided by CMC Microsystems?

Open source design platforms for accelerated system development.
