Xilinx ZCU102 Zynq Ultrascale+ MPSoC Evaluation Kit

Description

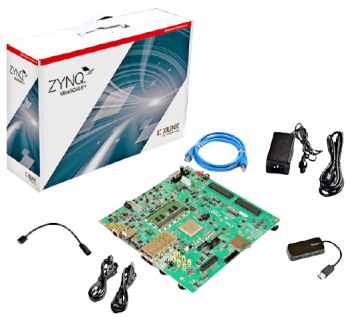

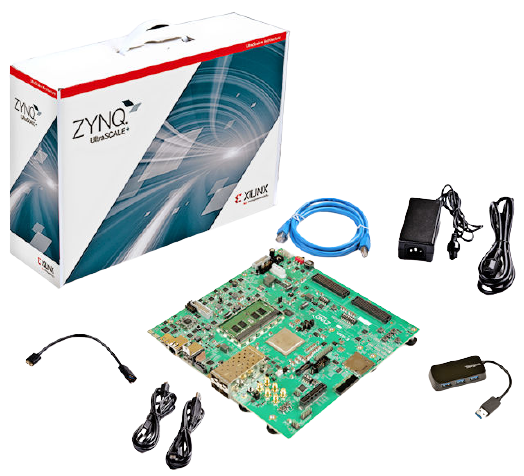

The ZCU102 is a high-performance, high-speed hardware/software design platform providing the integration of hardware, software, IP, and reference designs which enables quicker time-to-innovation for researchers. Based around the Xilinx Zynq Ultrascale+ MPSoC, it is equipped with industry-standard peripherals, connects, and interfaces that offer a rich set of features suitable for a wide range of applications.

Borrow from CMC

  • Request this equipment on a short-term loan basis. Equipment can be loaned for a 6-month term with no access fee; after the 6-month term, a $50/month rental price will apply.
  • For details, consult: Equipment Rental

Related Products

Benefits

  • Accelerates research by providing a feature-rich platform for implementing and validating embedded system architectures and algorithms
  • Addresses specific research needs through a hardware/software programmable system and application-specific daughter cards (e.g., analog interface module)
  • Enables a faster path to commercialization by sourcing commercial-grade components and through compliance with commercial standards and interfaces (e.g., PCI-express, Ethernet)

Applications

  • Embedded system design and emulation, specially hardware and software IP design and proof of the concept such as video codec, imaging/signal processing, communication protocol, etc., which needs advanced memories, connectivity, digital signal, and embedded processing
  • FPGA-based hardware acceleration of embedded applications in various research fields

Features

  • Xilinx Zynq Ultrascale+ MPSoC (XCZU9EG) with:
    • Quad-core ARM Cortex-A53 application processor
    • Dual-core ARM Cortex-R5 real-time processors
    • ARM Mali-400 MP2 graphics processing unit
    • 16nm FinFET+ programmable logic fabric
  • Peripherals, I/O and memory:
    • 4GB DDR4 (Processor) and 512MB DDR4 (FPGA)
    • Dual 64MB Quad SPI flash
    • SD card slot
    • HDMI video input and output; Displayport output
    • 10/100/1000 Mb/s Ethernet
    • 4x SFP+ cage
    • PCIe Gen2 x4 slot
    • Push buttons, DIP switches, LEDs
    • FMC-HPC and PMOD expansion connectors
