AVAILABLE EQUIPMENT

Keithley 2400 SourceMeter

The Keithley 2400 SourceMeter is designed for applications that rely on both precision sourcing and measuring. The device combines a 20 W, four-quadrant (source and sink) IV source with an IVR digital multimeter. The Keithley 2400 can perform linear, logarithmic, and custom sweeps for single-event or continuous operation. With 1pA current and 100nV voltage measurement resolutions, the Keithley 2400 is well-equipped for basic SMU test applications.

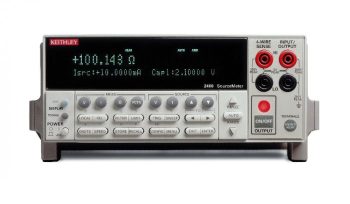

photo of Keithley 2400 SourceMeter

What’s Included

  • Keithley 2400 SourceMeter
  • 2 probes
  • GPIB-USB and HP cables by request

Helpful Resources​

Keithley 2400 SMU Datasheet

System Specifications​

  • ±200 V voltage source
  • ±1 A current source
  • 100 nV voltage measurement resolution
  • 1 pA current measurement resolution

Applications

  • Discrete semiconductor, passive and numerous other types of devices
  • Leakage, LIV, IDDQ, I-V characterization and other tests

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
