Mini Circuits High Power Amplifier ZHL-16W-43-S (16 W, 1.8 to 4 GHz)

This amplifier provides up to 16 W saturated output power over more than an octave up to 4 GHz. The amplifier is equipped with an automatic shutdown that is triggered if temperatures exceed +85°C. To avoid damage in the presence of an open or short circuit, the amplifier includes protective internal circuitry. The device is useful for a variety of applications from communications to test and measurement systems.

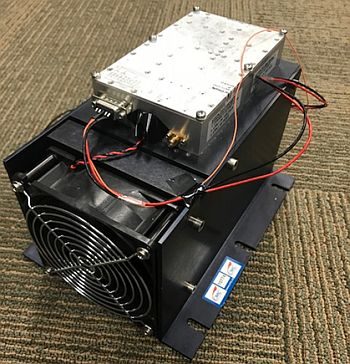

photo of Mini Circuits High Power Amplifier ZHL-16W-43-S (16 W, 1.8 to 4 GHz)

Specifications​

  • 16 Watts, high power
  • 3 A current consumption
  • Frequency range: 1.8 to 4.0 GHz
  • 1.3:1 output VSWR
  • Typical 45 dB gain
  • Noise figure 6.0 dB
  • Automatic shutdown with output load protection


Applications

  • Wireless communications
  • Laboratory testing
  • Radar

What’s Included

Mini Circuits HP Amplifier
