RF Bay MPA-22-30 RF Power Amplifier

The RF Bay MPA-22-30 is a power amplifier with a 30 dB gain and 30 MHz to 2.2 GHz frequency range. The amplifier requires a single 12 VDC power supply and has SMA connectors.

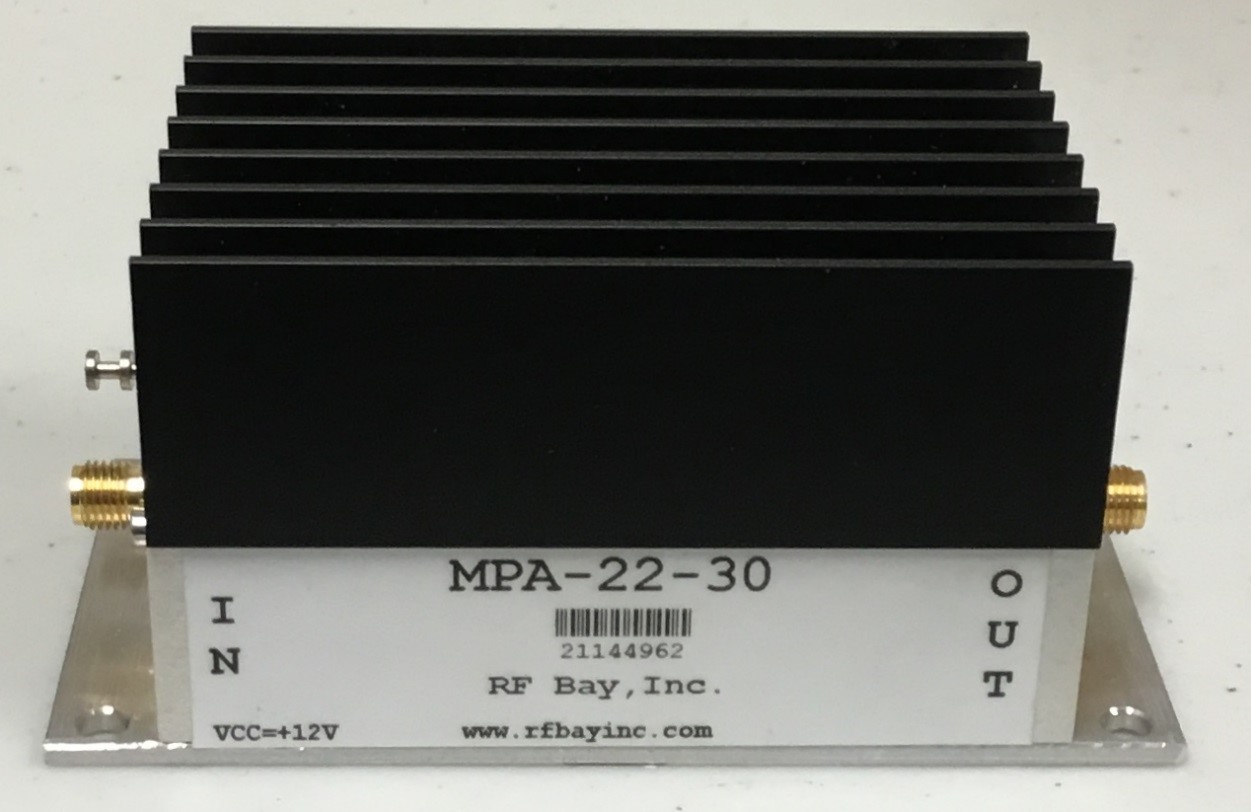

photo of RF Bay MPA-22-30 RF Power Amplifier

Specifications​

  • 30 MHz to 2.2 GHz frequency range
  • 30 dB gain
  • 2 dB noise figure

Applications

  • Powering Transmitter Antennae
  • RF Signal Amplification

What’s Included

RF Bay Amplifier

Resources​

RF Bay Amplifier Datasheet

Rent this equipment

Start an Application
