Harvard Apparatus Pico Plus Pump

The Pico Plus infusion pump delivers low flow rates, either infusing or withdrawing fluid, at low to moderate back pressures. The device can hold any two syringes from 0.5 µl to 10 ml. The diameter and desired flow rate are entered via the keypad and stored in non-volatile memory. In the event of a power outage, the Pico Plus is equipped with “power failure mode” that allows the user to decide whether to turn the pump off or to resume pumping once power is restored. The pump can either operate in RATE mode, which continuously dispenses fluid at a specified rate, or the pump can release exact amounts of fluid in VOLUME mode.

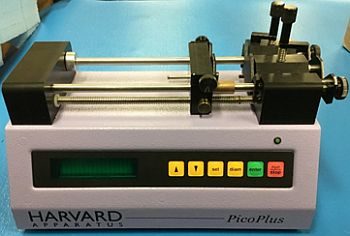

photo of Harvard Apparatus Pico Plus Pump

What’s Included

  • Pico Plus syringe pump
  • Printed manual
  • Power Adapter

Helpful Resources​

User manual & Datasheet

System Specifications​

  • Holds 2 syringes, plastic or glass, from 0.5 µl to 10 ml. Maximum 16 mm inside diameter
  • Flow rate range: 1.3 pl/min with 0.5 µl syringe to 0.4393 ml/min with 10 ml syringe
  • Automatic calibration based on entered syringe inside diameter


  • Procedures that require precise metering, particularly at the micro and nanoscale
  • Material development and characterization
  • Pharmaceuticals

Rent from CMC​

  • Request this equipment on a short-term loan basis.
  • Click here to complete the rental application.
