Electronic Sensor Platform (ESP)

3IT logo

Description

ESP is a signal conditioning platform for converting trapped charges into a voltage signal. Charges are trapped on the surface by a functional material applied by the user, such as graphene, biomolecules, or quantum dots. The platform is useful for the implementation of solid-state high-performance detectors.

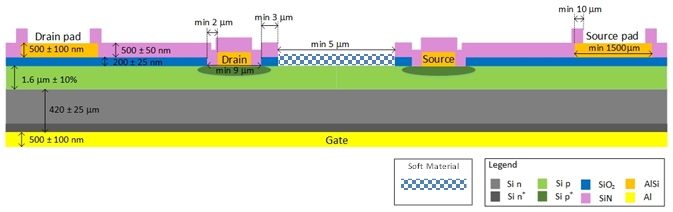

JFET_V2.0
Electronic Sensor Platform (ESP)

Note: The expected number of chips to be delivered for this technology is 11 (10 x 10 mm).

Applications

  • Ambient gas/radiation sensor
  • Multiplex detectors for different functionalized coatings

Services

  • Multi-project wafer runs for fabrication of custom designs
  • Cloud design environment (includes design guide, layout template, reference designs, and simulations)
  • DRC and engineering support for sensor design
  • Sub-dicing
  • Mounting and wire bonding in ceramic pin grid array package
  • Integration with microfluidics
  • Reference chips available

Features

  • Silicon junction field effect transistors with unpassivated gate, enabling user-deposition of sensor material
  • One metal routing layer, silicon substrate
  • Up to 10 copies per design (10 x 10 mm).  Available as bare die or packaged parts
  • Sub dicing into 5 x 5 mm2 dies is available for an additional cost.

Design Kits and Libraries

Pricing

List Price
Price for Subscribers

$5,320
(per 10 x 10 mm2 design)

Note: List pricing does not include Engineering Support – contact fab@cmc.ca for a quote.

Note: Discounted pricing is available to academics in Canada with a CMC Subscription. You must sign in to see it.

Licensing

Terms and conditions License Grant.

Minimum Subscription Required: Research
